ZodiARM Build Guide

Written By Spencer Deven

ZodiARM kit

1x Left ZodiARM PCB
1x Right ZodiARM PCB
70x MX/Choc Hotswap Sockets

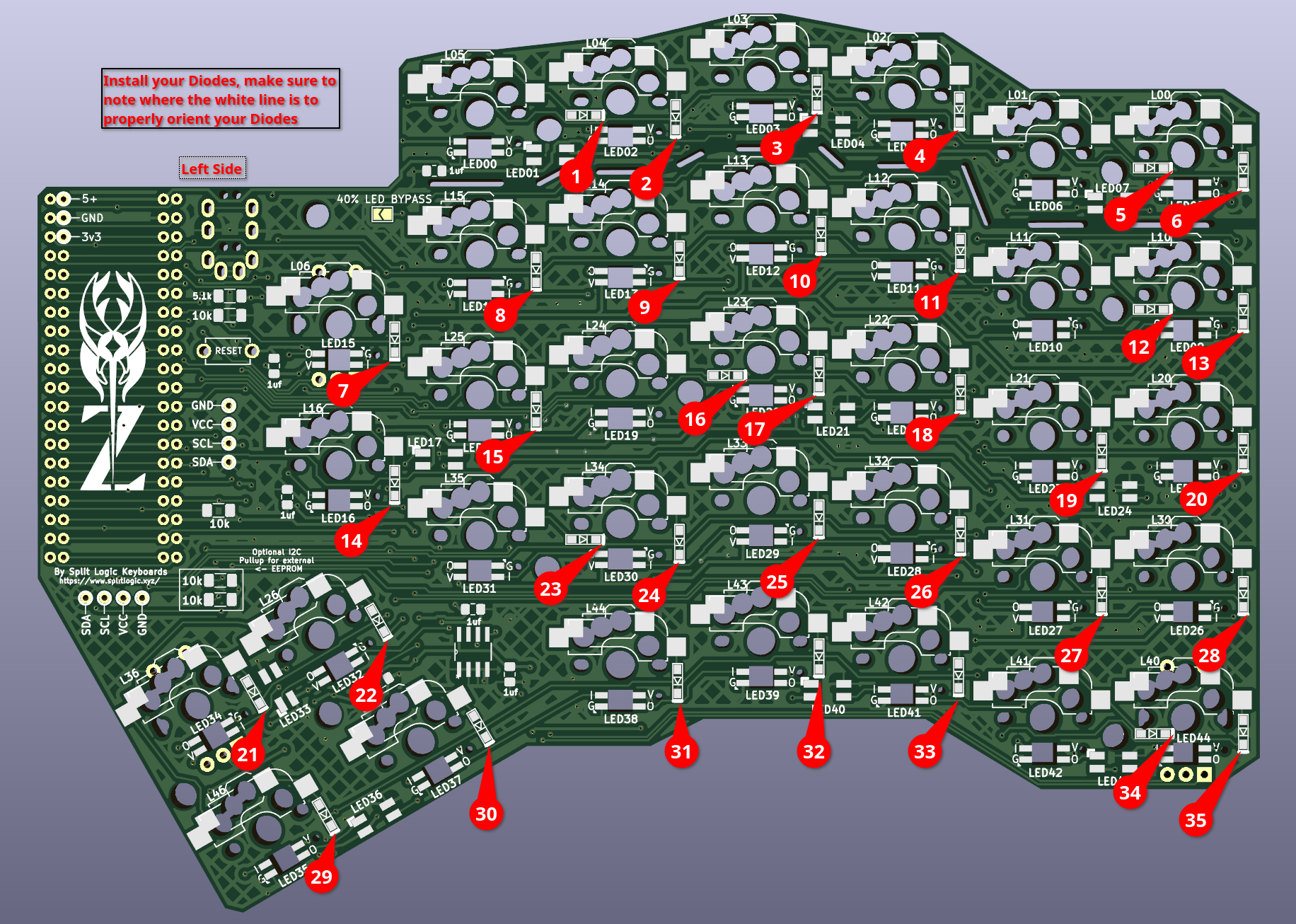

70x SOD-123 Diodes
70x Key LEDs
20x Underglow LEDs
12x 1uf Capacitors
4x 10k Resistors
2x TRRS Jacks
2x Reset Buttons

Required to finish the build
2x F401 or F411 Blackpill MUC
64-70x MX/Choc switches/keycaps
Up to 6x EC11 encoders
3D printed or plate case
2x I2C OLEDs
1x TRRS Cable
